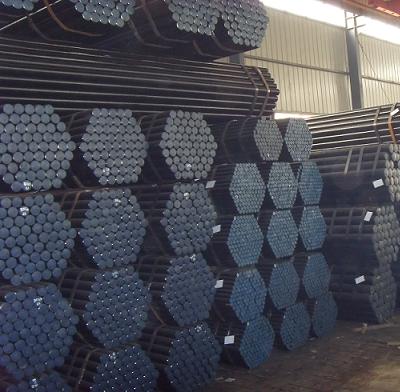

API 5L Line Pipe

API 5L GrB Seamless Pipe

Size Range
Seamless Pipe 1/8” ～24”, DN15～DN600 OD21.3MM～609.6MM
API Line pipe：1/8”-48” inch, DN6～DN1200
Wall Thickness
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs,
Standards
API
Material
API 5L GrB API 5CT X42-X80



Line Pipe Physical Properties
API 5L Grade	Yield Strength min. (ksi)	Tensile Strength min. (ksi)	Yield to Tensile Ratio (max.)	Elongation min. %
A	30	48	0.93	28
B	35	60	0.93	23
X42	42	60	0.93	23
X46	46	63	0.93	22
X52	52	66	0.93	21
X56	56	71	0.93	19
X60	60	75	0.93	19
X65	65	77	0.93	18
X70	70	82	0.93	17
X80	80	90	0.93	16

API 5L line pipe, Pipe Specification API 5L, Line Pipe
